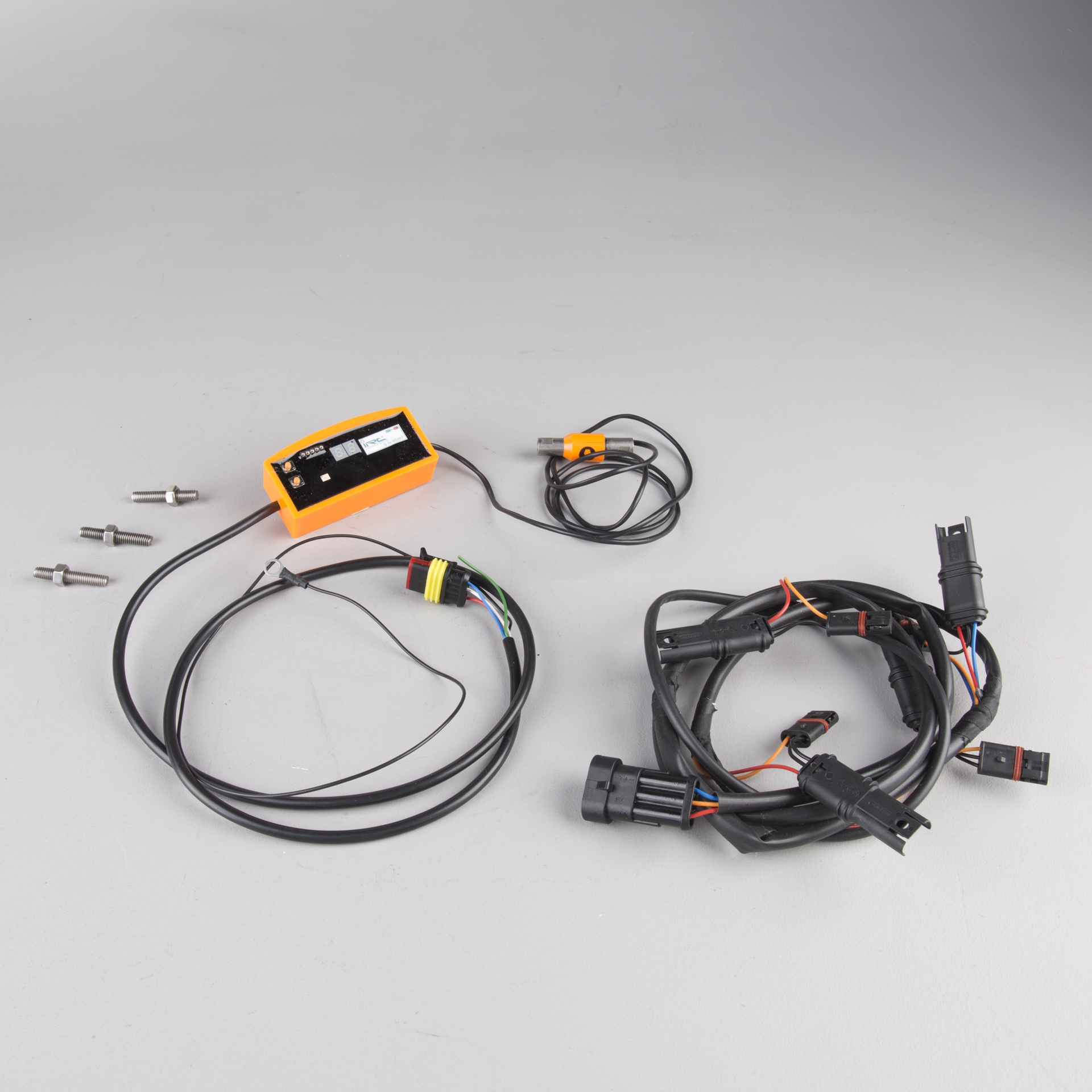

IRC Quickshifter Without Gear Rod

Quick and easy quickshift kit from IRC with plug and play connectors for most Japanese sports bikes, Ducati, Aprilia, KTM, Triumph, Guzzi BMW, Morini, Bimota, BENELLI. For any other bike an electric wiring scheme is given. It has a Compushift feature (switchable) to automatically evaluate the best killtime for each upshift, according to engine conditions, load, rpm and acceleration, making a choice between 500 different killtimes in the range 20÷180ms. A Smoothshift feature eases the shock loads on the gear box and chain to lessen loss of traction at upshift. Thanks to this it's possible to change gear at full throttle even at maximum tilt angle.

Features:
• Programmable on/off rpm threshold
• Adjustable killtime (40÷99ms)
• Dimensions: F=15mm, L=50mm
• IP65 guaranteed i.e. water and dust proof
• Extremely reliable: 1,500,000 cycles @65Kgs load passed
• Miniature digital Led panel, no PC needed
• Able to work both pushing and pulling
• Analog, 0-5V, settable in one or both directions. Reading range: 0÷100Kgf, connection with Marelli, Motec and similar data loggers
• Calibrated and calibratable at any time
• MAX LOAD recording
• CURRENT LOAD display
• Failure Check warning
• Automatic temperature, vibrations and creep adjustment
