Description

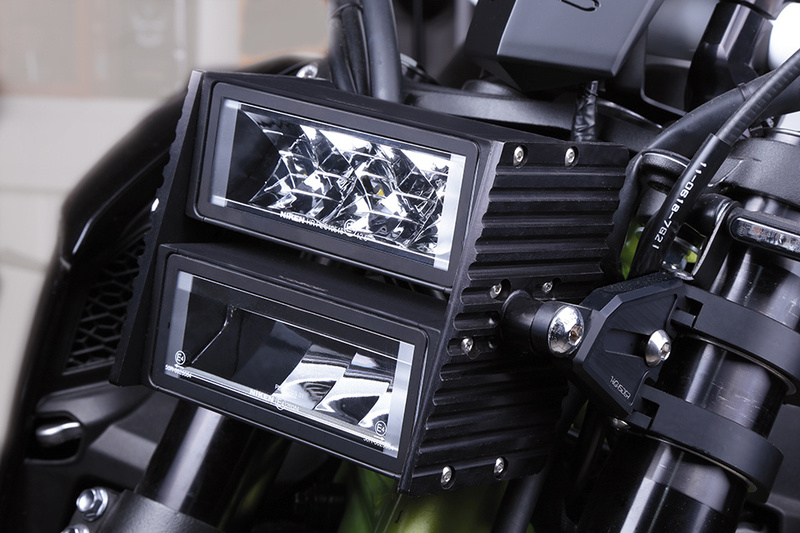

Highsider ULTIMATE LED headlight with Highsider Wave holder, black, side mount

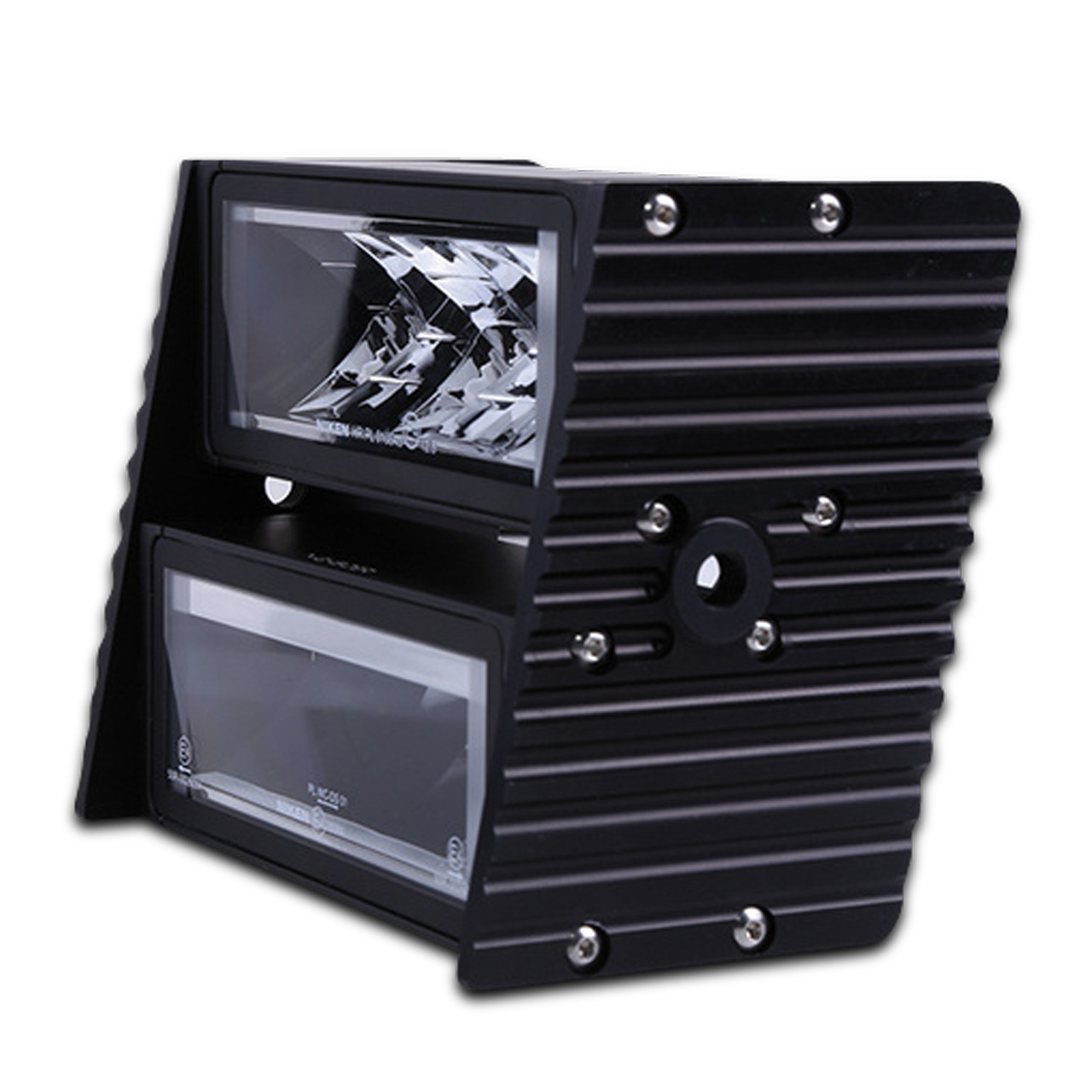

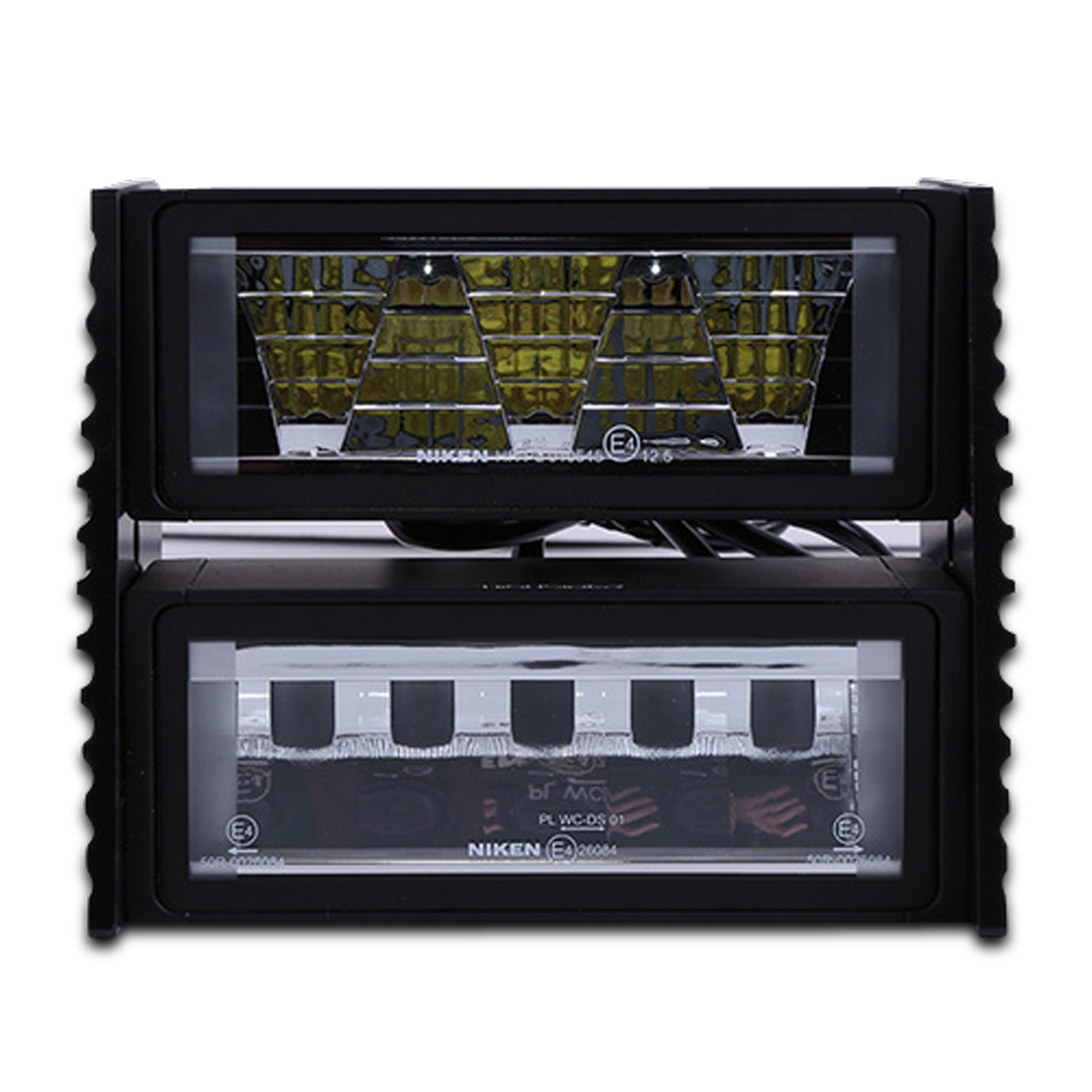

Connected to the Highsider Wave bracket, this LED headlight set consists of a high beam and low beam headlight with position light. On the back of the aluminium housing are cooling fins. The clear and simple design of the headlight set is suitable for streetfighters, cruisers and naked bikes.
Dimensions:
Width 152 mm
Depth 98 mm
Height: 121 mm
Distance of mounting holes (centre–end): 62 mm
Fixing: Mounting holes on the side with Ø M 10
Connections:
Black cable (2x) = ground (-) Yellow cable = high beam (+) Blue cable = low beam (+) White cable = position light (+)
Connected to the Highsider Wave bracket, this LED headlight set consists of a high beam and low beam headlight with position light. On the back of the aluminium housing are cooling fins. The clear and simple design of the headlight set is suitable for streetfighters, cruisers and naked bikes.
Dimensions:
Width 152 mm
Depth 98 mm
Height: 121 mm
Distance of mounting holes (centre–end): 62 mm
Fixing: Mounting holes on the side with Ø M 10
Connections:
Black cable (2x) = ground (-) Yellow cable = high beam (+) Blue cable = low beam (+) White cable = position light (+)
Specifications
- Weight Packaging 699
- Length Packaging 218
- Manufacturers article number 223-085
- Height Packaging 132
- Placement Front
- Width Packaging 180
