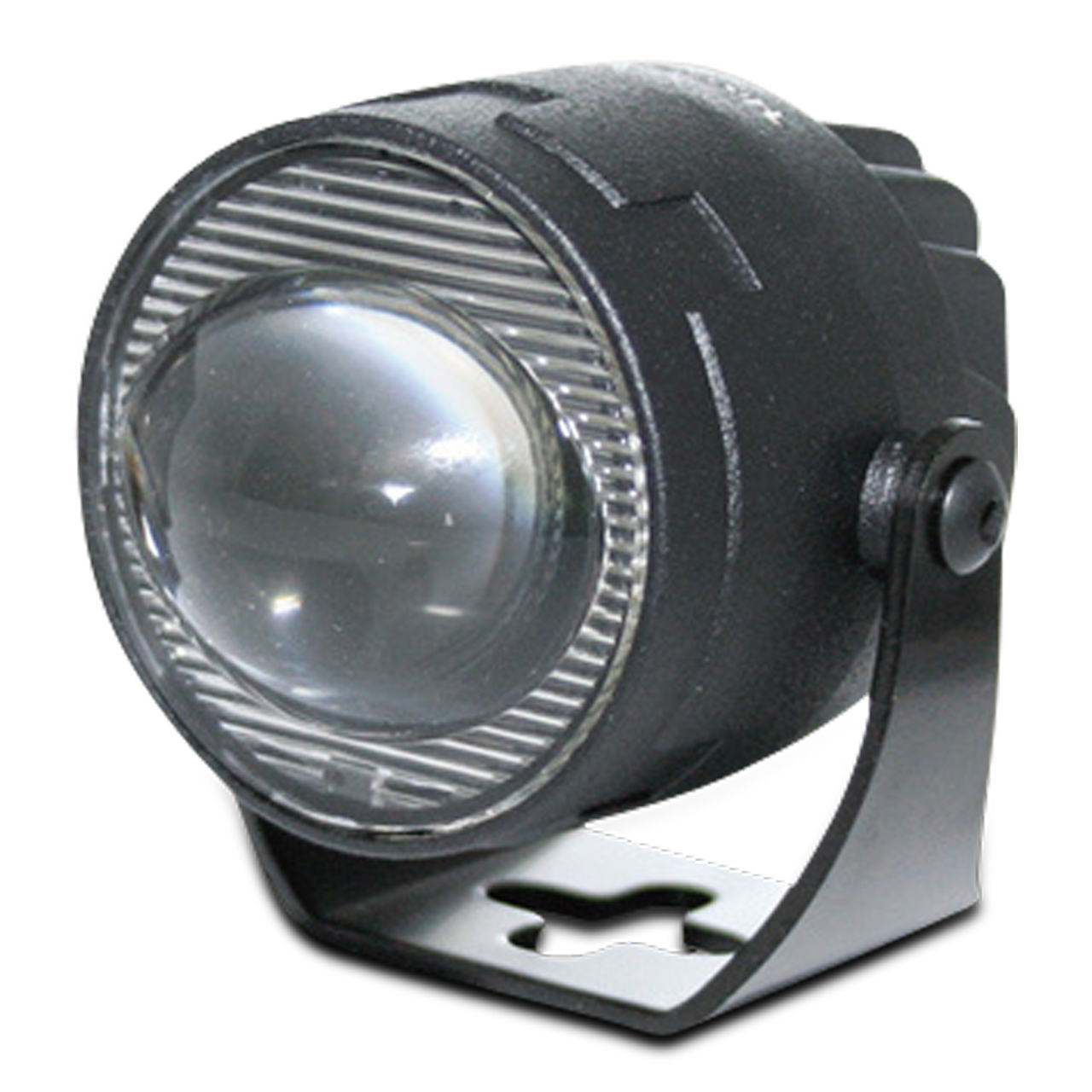

Highsider Satellite Headlight Low Beam

Highsider Satellite LED low beam headlight with holder, E-approved.

Small, powerful low beam headlight with 2 power LEDs (8 watts each) in a matt black aluminium housing with a round lens, enclosed in a sturdy steel holder. The LED technology and the insert used produce a symmetrical, bright light for optimum perception of bikers by other road users.

Dimensions headlamp and holder
Lens diameter: 44 mm
Maximum housing diameter: 50 mm
Housing length: 62 mm
Base plate holder with slotted holes: 33 x 33 mm
Max. Width holder: 59 mm

Dimensions box
Height: 16 mm
Width: 49 mm
Depth: 19mm

Current consumption at 12.5 volts DC (suitable for 8 – 16 volts): approx. 0,7 Ampere, 520 Lumen

Connections:
Red = Plus (+) The red cable is connected to ignition plus (+) Black = Ground (-)

Scope of supply: 1 piece

Note:
The headlight must not be connected without the supplied black electronics box (voltage control)!
