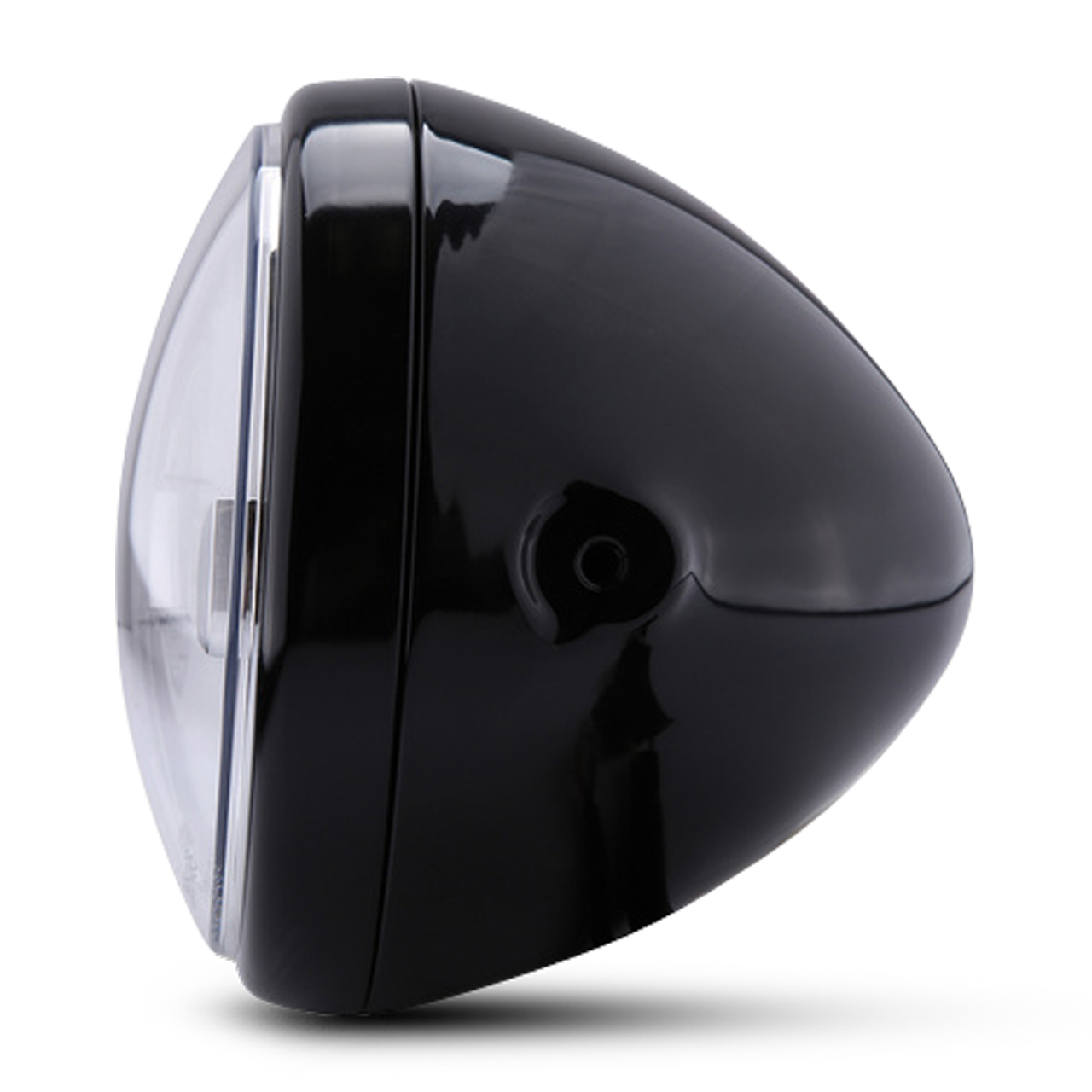

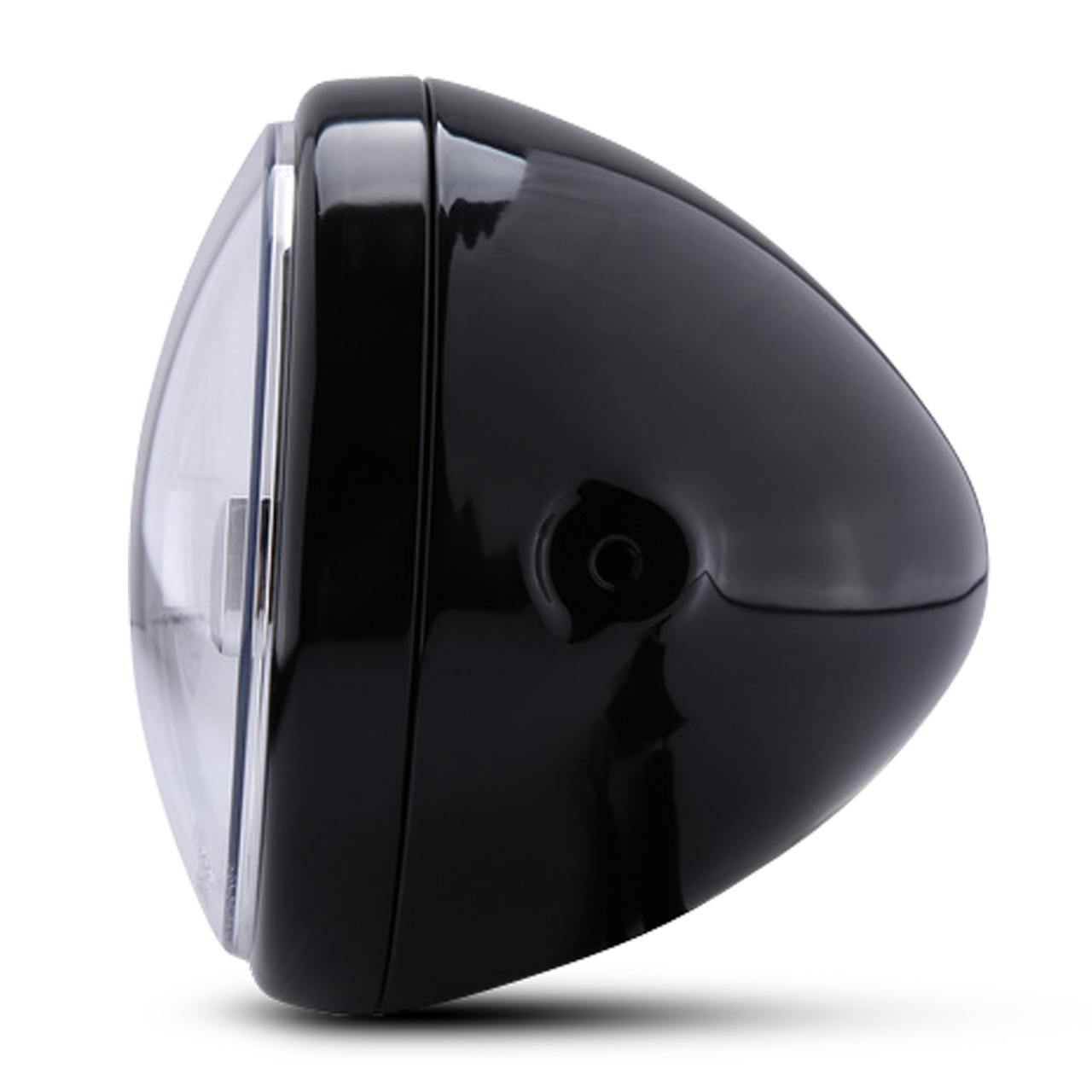

Highsider Reno Typ 4 Main Headlight

HIGHSIDER Oval headlight for lateral mounting. Thanks to its puristic, timeless design and innovative technology, it is a highlight for many motorcycles.

The chrome-plated reflector with clear glass also has a high beam, low beam, parking and daytime running light function. The daytime running light and position light are mounted in a central strip, so that a very beautiful optical image is created - the dipped beam lights up above the strip, the main beam light correspondingly below. The reflector emits an asymmetrical luminous flux - only approved for right-hand traffic -, E-examined.

Our highlights give your bike an unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions:

Housing diameter: 200 mm
Height insert diameter: 178 mm
Housing depth: 160 mm
Distance between mounting holes (middle - middle): 170 mm
Distance between mounting hole (middle) and housing end: approx. 90 mm

Fastening:lateral with M8 threaded bolts

Connections:

Black cable = ground (-)
Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W
Yellow cable = high beam (+), power consumption at12V: 1.3A, 13W
Black cable = ground (-)

TFL:

Black cable = ground (-)
Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W
White cable = position light (+), power consumption at 12V: 0.2A, 2.4W

Scope of supply: 1 piece incl. 3 pin connector

Replacement reflector:LED main headlight insert TYPE 4, chrome, Art.-ItemNo.: 226-018

Notes:

Use asymmetrical, approved for right-hand traffic only.
The enclosed 3-pole standard plug must be installed by the customer after reflector installation.

View of plug contacts:

Driving light (yellow) = right-hand
Dipped beam (blue) = top
ground (black) = left-hand
