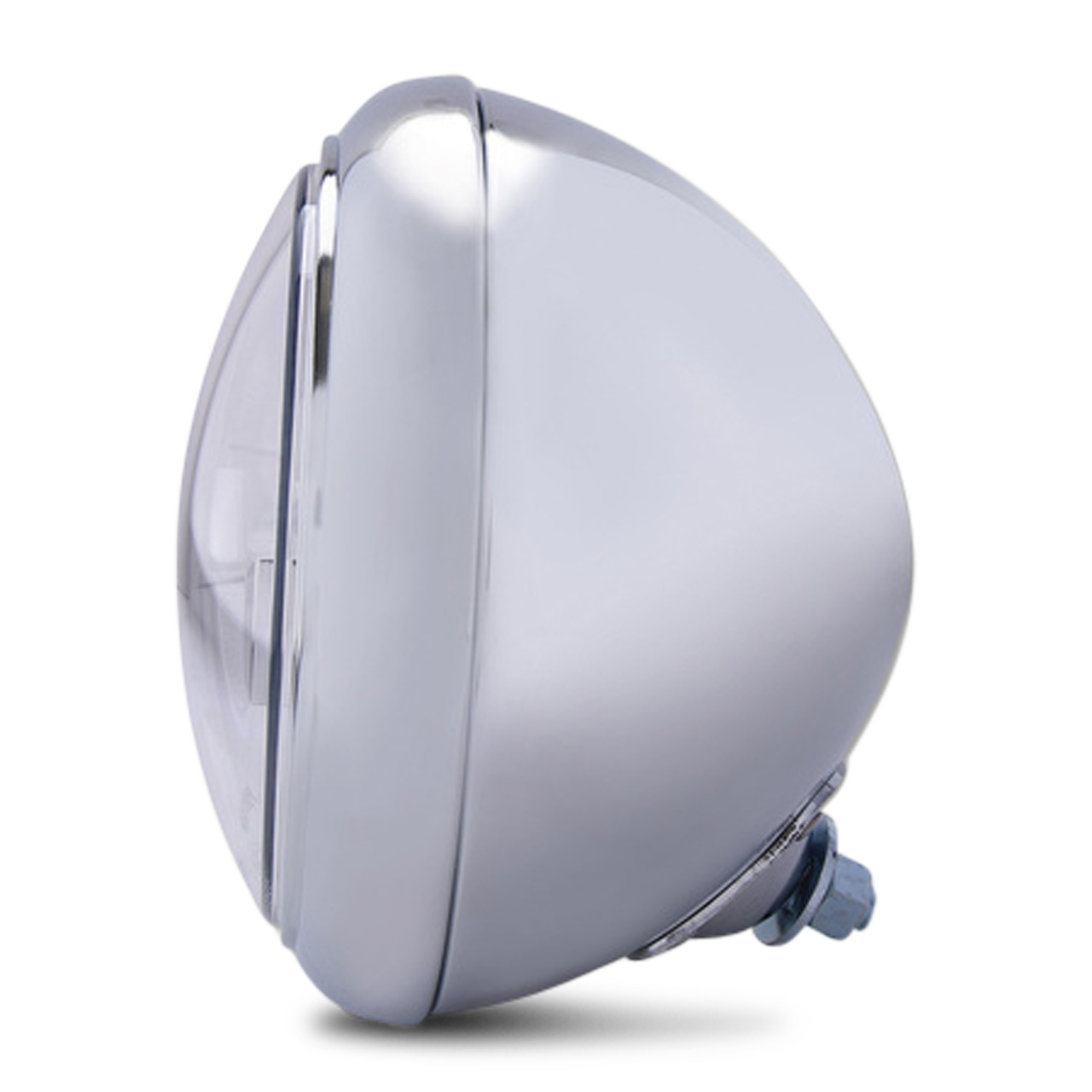

Highsider Hd-Style Typ 4 Main Headlight

Highsider Oval main headlight with holder for lower attachment. Thanks to its puristic, timeless design and innovative technology, it is a highlight for many motorcycles.
The chrome Reflector with clear glass has a high beam, low beam, parking and daytime running light function. The daytime running and position light are installed in a central strip so that optically a very good beautiful light image is created - the low beam shines above the bar, the high beam correspondingly below. The reflector emits an asymmetrical beam - approved for right-hand traffic only- Luminous flux off, E-tested.

highlights that gives your bike a distinctive style! The unusual design and the perfect technology of the Highsider headlight series make it a highlight in every case!

Dimensions:
•Housing diameter: 220 mm
•Diameter headlight insert: 178 mm
•Depth: 155 mm

Connections:
•Black cable = ground (-)
•Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W
•Yellow cable = high beam (+), power consumption at 12V: 1.3A, 13W
•Black cable = ground (-)

TFL:
•Black cable = ground (-)
•Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W
•White cable = position light (+), power consumption at 12V: 0.2A, 2.4W

Scope of delivery: 1 piece incl. 3-pin plug and holder for lower fastening:

Optionally available: Main headlight insert TYPE 4, chrome, art. no.: 226-018

Notes:
•An asymmetrical insert is only approved for right-hand traffic.
•The enclosed 3-pole Standard plug must be mounted by the customer after reflector installation.

View of plug contacts:
•High beam (yellow) = right
•Dipped beam (blue) = top
•Ground (black) = left.
