Highsider Dual-Stream Main Headlight
Manufacturer ID: 223-454
Add your vehicle to ensure you get the right parts
Customer reviews (0)
0 out of 5
Based on 0 reviews
Description

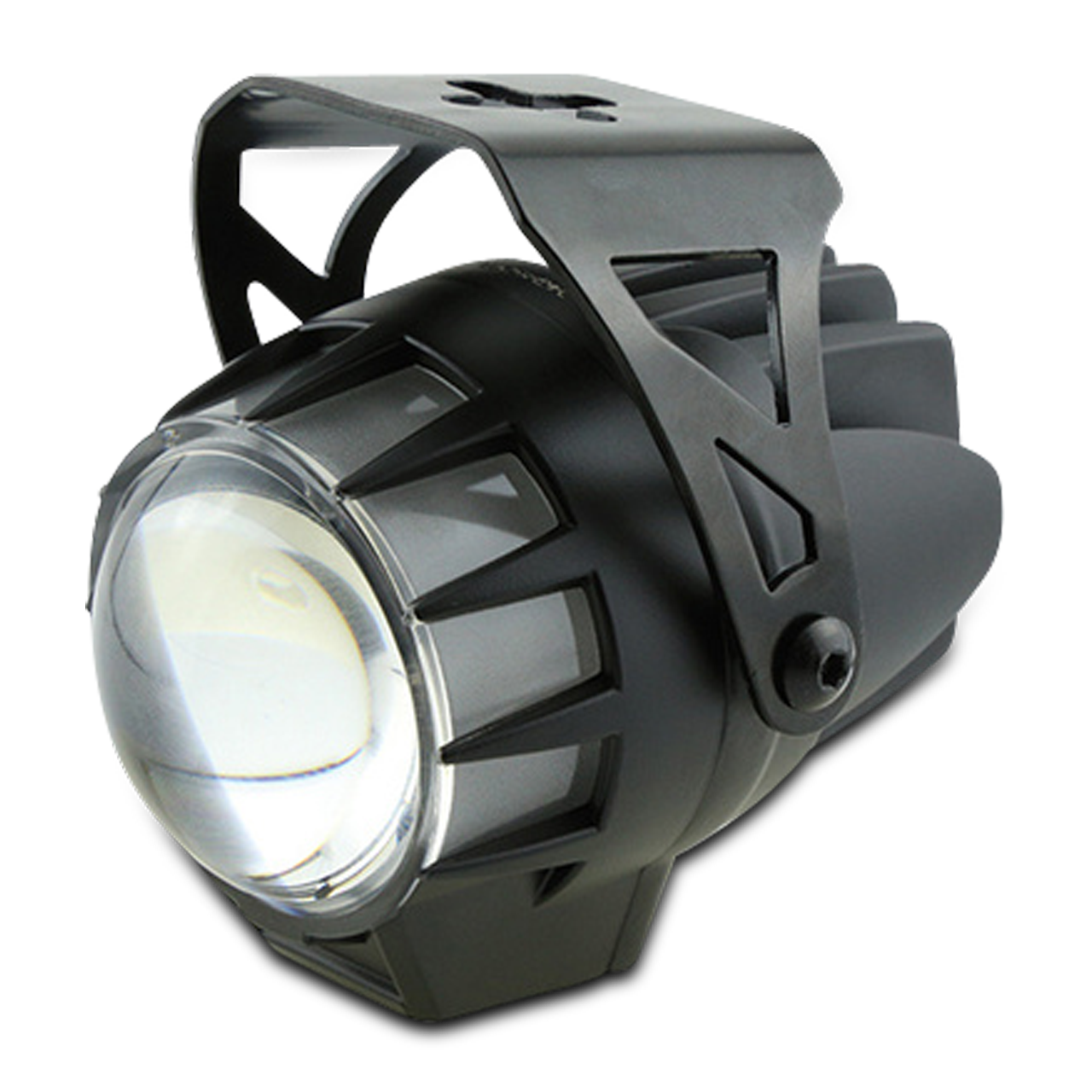

Highsider Dual-Stream LED Headlight, black, E-tested
The small all-in-one headlight with a round lens is a powerful LED main headlight in a black housing and sturdy bracket. The special feature of the DUAL-STREAM is the parking light illuminated ring around the lens, and the shutter technology through which a mechanical shutter switches between a high beam and a low beam. The use of this modern LED technology makes it possible to achieve the smallest possible housing dimensions while, at the same time, achieving the highest possible luminous efficacy.
Dimensions:
Diameter lens: approx. 45 mm
Height: 70.2 mm, Width: 67 mm, Depth: 96.5 mm
Mounting hole spacing: 67 mm
Mounting holes on the side: 5 mm
Housing material: aluminium
Weight: 0.230 Kg
Power consumption: 12V / 12W, 739.3 lm, low beam; 12V / 19W, 739.3 lm, high beam
Connections: Position light = brown, Dipped beam = white, the white cable is connected to ignition plus (+)
High beam = blue Ground = green (-)
The small all-in-one headlight with a round lens is a powerful LED main headlight in a black housing and sturdy bracket. The special feature of the DUAL-STREAM is the parking light illuminated ring around the lens, and the shutter technology through which a mechanical shutter switches between a high beam and a low beam. The use of this modern LED technology makes it possible to achieve the smallest possible housing dimensions while, at the same time, achieving the highest possible luminous efficacy.
Dimensions:
Diameter lens: approx. 45 mm
Height: 70.2 mm, Width: 67 mm, Depth: 96.5 mm
Mounting hole spacing: 67 mm
Mounting holes on the side: 5 mm
Housing material: aluminium
Weight: 0.230 Kg
Power consumption: 12V / 12W, 739.3 lm, low beam; 12V / 19W, 739.3 lm, high beam
Connections: Position light = brown, Dipped beam = white, the white cable is connected to ignition plus (+)
High beam = blue Ground = green (-)
Specifications
- Weight Packaging 699
- Length Packaging 218
- Manufacturers article number 223-454
- Height Packaging 132
- Placement Front
- Width Packaging 180
