Description

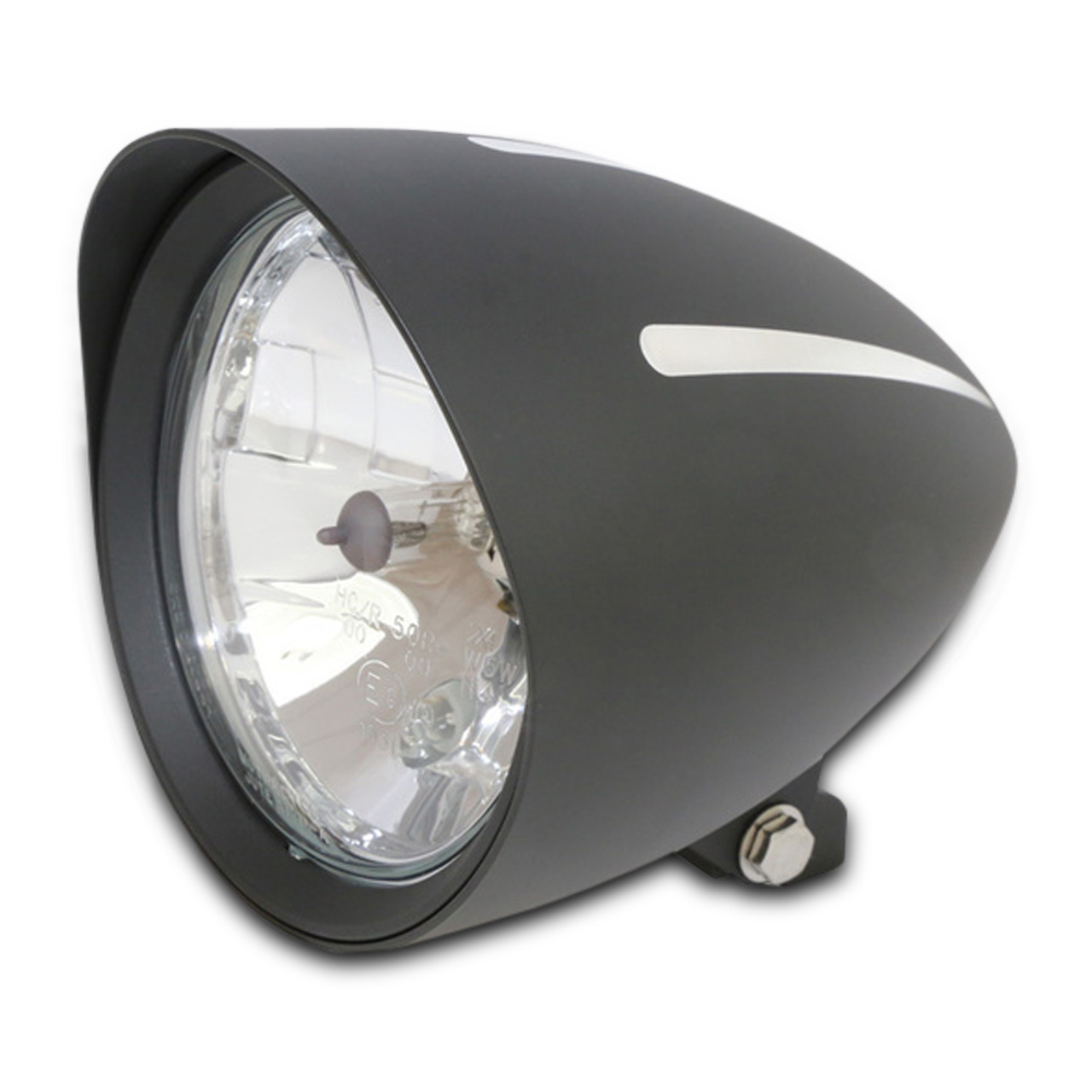

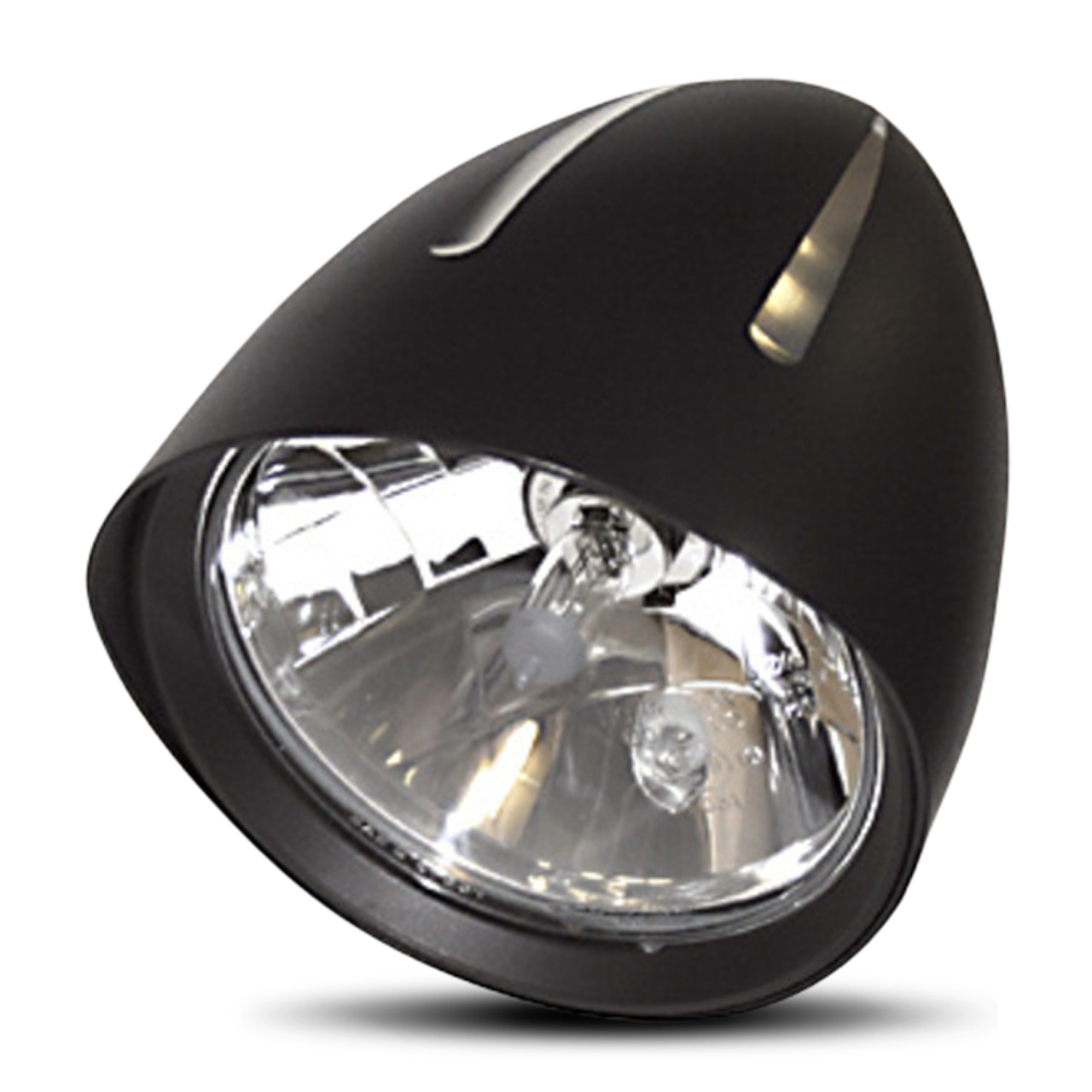

Highsider Classic 1 Extreme Headlight 5 3/4" for lower mounting
H4 halogen headlight with a high-quality black aluminium housing with 3 distinctive CNC milled grooves and a nostalgic umbrella (length: about 25 mm) in retro look. The headlight has an asymmetric prismatic reflector – only approved for right-hand traffic – and a parking light, E-approved.
Technical data:
Lamps: H4, 12 V 60/55 W
Fixing: bottom
Diameter: 157 mm Depth: 220 mm
Holder centre fixing screw to front: 127 mm
Holder clearance: 18 mm
Fixing: bottom
Connections: White cable = dipped beam (+) green cable = mass of H4 bulb blue cable = high beam (+) brown cable = parking light (+) black cable = mass of parking light (-)
Notes: Asymmetrical reflector – only approved for right-hand traffic. Replacement insert: 1107668
H4 halogen headlight with a high-quality black aluminium housing with 3 distinctive CNC milled grooves and a nostalgic umbrella (length: about 25 mm) in retro look. The headlight has an asymmetric prismatic reflector – only approved for right-hand traffic – and a parking light, E-approved.
Technical data:
Lamps: H4, 12 V 60/55 W
Fixing: bottom
Diameter: 157 mm Depth: 220 mm
Holder centre fixing screw to front: 127 mm
Holder clearance: 18 mm
Fixing: bottom
Connections: White cable = dipped beam (+) green cable = mass of H4 bulb blue cable = high beam (+) brown cable = parking light (+) black cable = mass of parking light (-)
Notes: Asymmetrical reflector – only approved for right-hand traffic. Replacement insert: 1107668
Specifications
- Weight Packaging 699
- Length Packaging 218
- Manufacturers article number 223-034
- Height Packaging 132
- Placement Front
- Width Packaging 180
