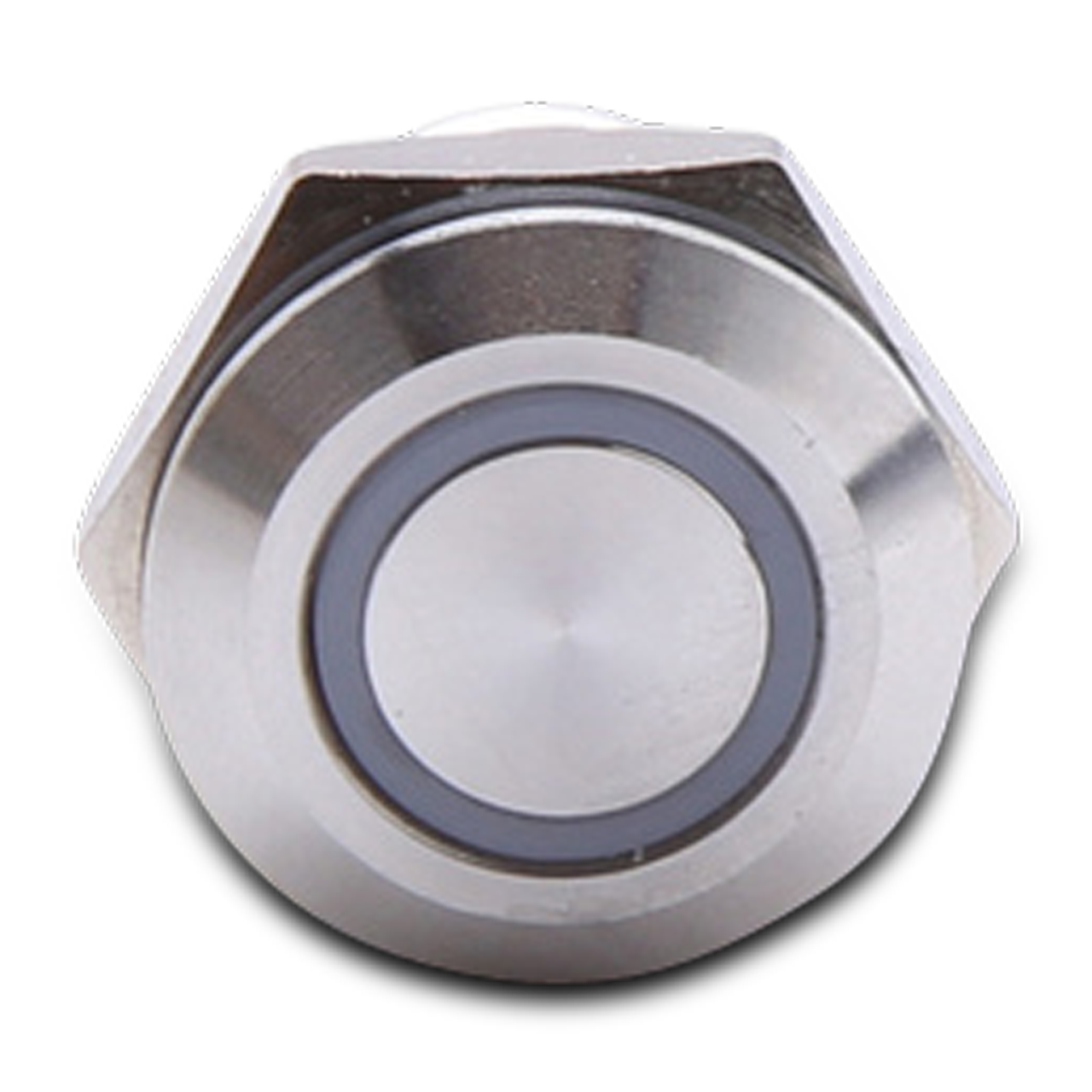

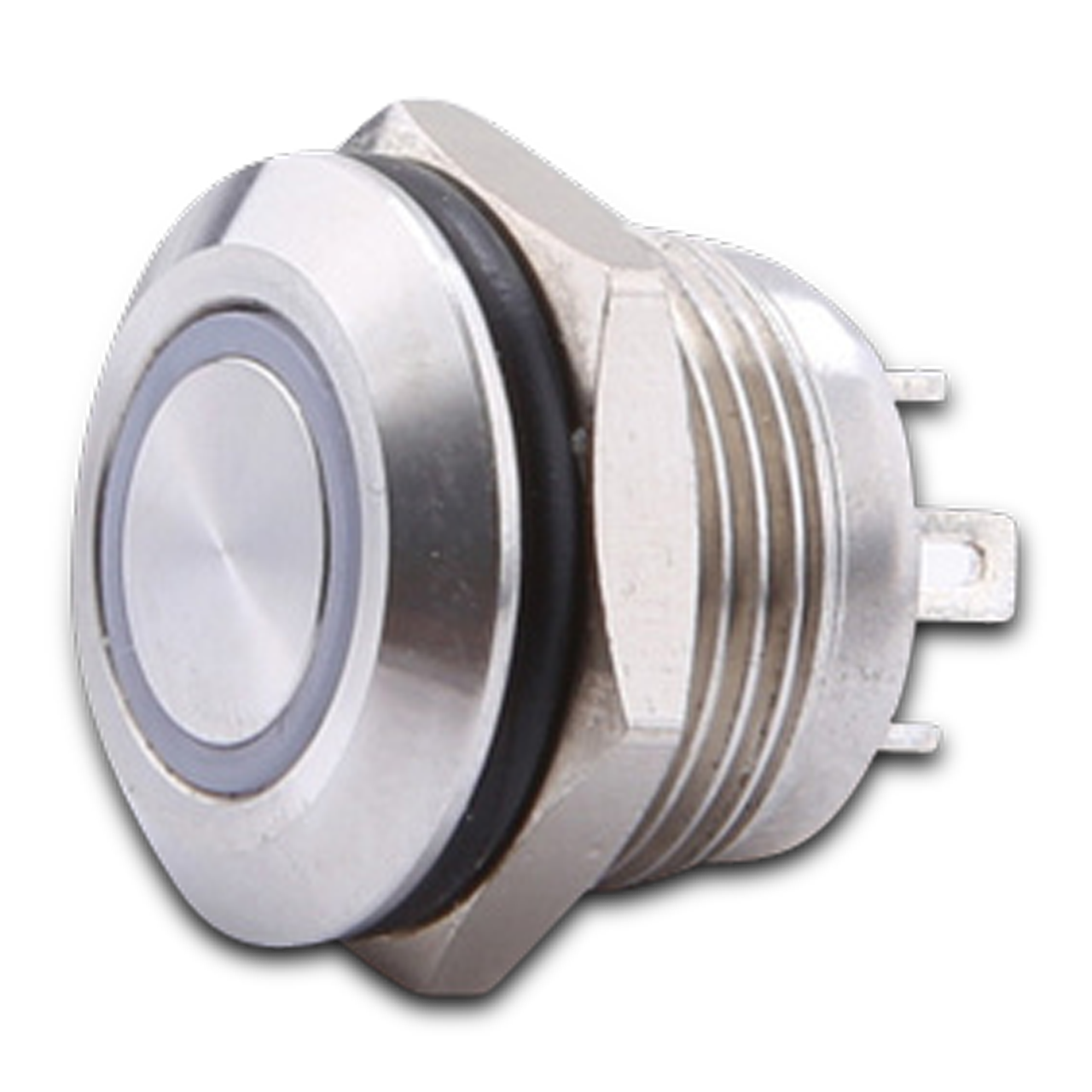

Highsider Button Switch W. LED Ring M12
Manufacturer ID: 240-083
Out of Stock
This variant is not available right now.
Check back in a while!
Blue
Out of Stock
60-day return policy
Customer reviews (0)
0 out of 5
Based on 0 reviews
Description
HIGHSIDER push button stainless steel with LED ring in different colours.
Due to its ergonomic pressure point, it is ideal for operating and controlling all instruments. The pushbutton is very sturdy and therefore hardly susceptible to vibrations. As with all HIGHSIDER products, this switch is made of only the best materials and is also splash-proof (IP65).Make your bike unique!
Dimensions:
Diameter: 14 mm
Total length: 14 mm
Insertion length 13 mm
Mounting diameter 12 mm
Nut: M12 x 0.75, outside 14 mm

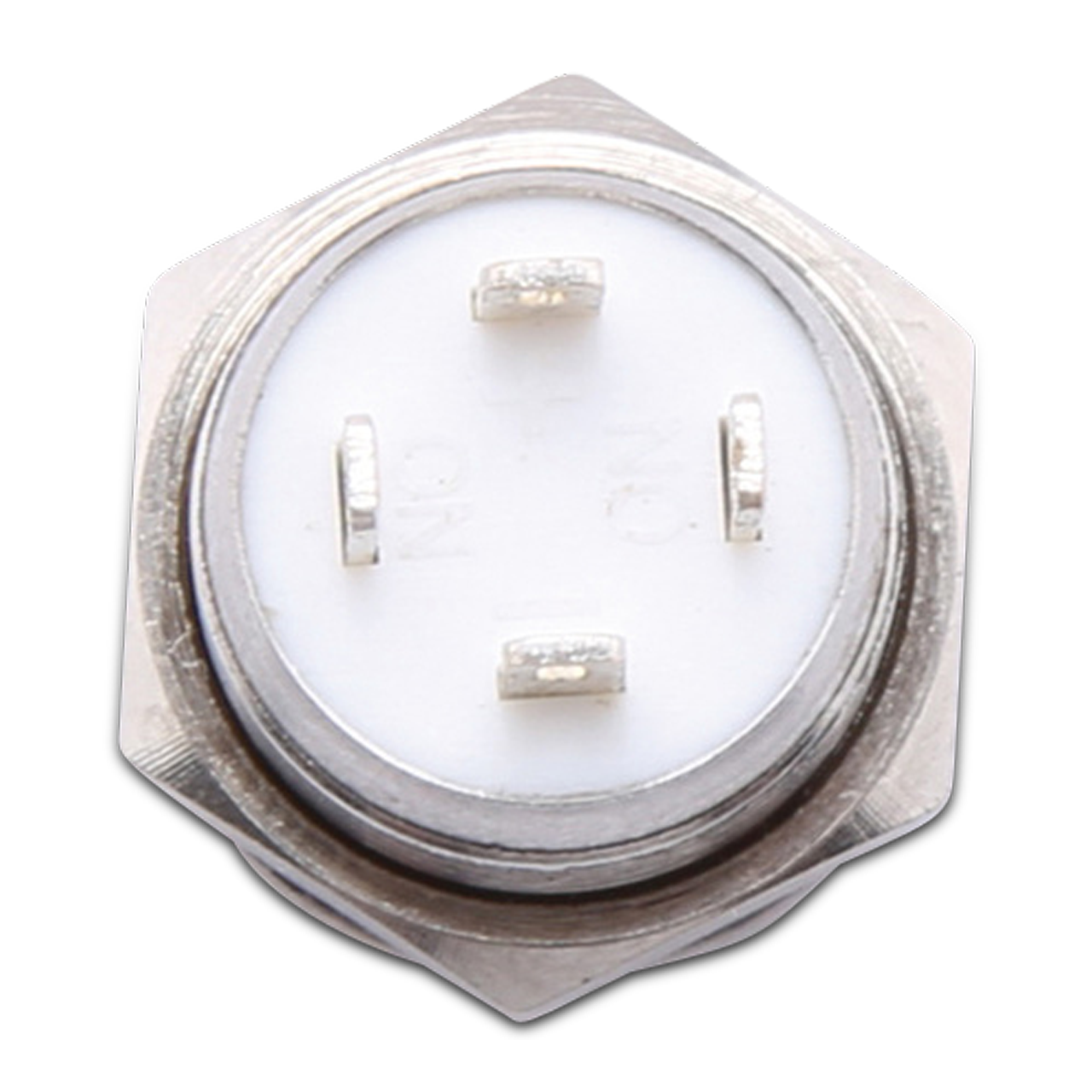

Connections:
Plus = light ring blue (+)
Ground = (-)
ON = Input
ON = Output
Voltage: 12V DC
Max. Current: 2A
Max. Switching capacity: 24W
Water protection class:IP65
Scope of delivery:1 piece
Due to its ergonomic pressure point, it is ideal for operating and controlling all instruments. The pushbutton is very sturdy and therefore hardly susceptible to vibrations. As with all HIGHSIDER products, this switch is made of only the best materials and is also splash-proof (IP65).Make your bike unique!
Dimensions:
Diameter: 14 mm
Total length: 14 mm
Insertion length 13 mm
Mounting diameter 12 mm
Nut: M12 x 0.75, outside 14 mm
Connections:
Plus = light ring blue (+)
Ground = (-)
ON = Input
ON = Output
Voltage: 12V DC
Max. Current: 2A
Max. Switching capacity: 24W
Water protection class:IP65
Scope of delivery:1 piece
Specifications
- Weight Packaging 336
- Length Packaging 282
- Manufacturers article number 240-083
- Sku Title Blue
- Height Packaging 39
- Width Packaging 55
